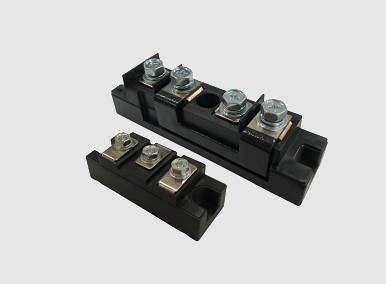

Diode Module
A diode module configured for rectifier circuits at commercial frequencies.

Features
- ・Possible for customizable by packaging technology which meets customer needs.
- ・Original structure design improves heat dissipation
- ・UL approved standard / RoHS compliant
Applications
Welding machine / Motor control / Electric furnace / UPS power supply / DC power supply / AC power supply / Conveyor
Specifications
Product | Circuit | Model | VRRM | IF | IFSM | Tjw |
---|---|---|---|---|---|---|
Diode Module | ![]() |
PWA150DTS08 | 800 | 150 | 3200 | −40~+150℃ |
PWA150DTS16 | 1600 | 150 | 3200 | −40~+150℃ | ||
PWA200DTS08 | 800 | 200 | 4000 | −40~+150℃ | ||
PWA200DTS16 | 1600 | 200 | 4000 | −40~+150℃ | ||
PWB150DTS08 | 800 | 150 | 3200 | −40~+150℃ | ||
PWB150DTS16 | 1600 | 150 | 3200 | −40~+150℃ | ||
PWB200DTS08 | 800 | 200 | 4000 | −40~+150℃ | ||
PWB200DTS16 | 1600 | 200 | 4000 | −40~+150℃ | ||
![]() |
PWA150DTR08 | 800 | 150 | 3200 | −40~+150℃ | |
PWA150DTR16 | 1600 | 150 | 3200 | −40~+150℃ | ||
PWA200DTR08 | 800 | 200 | 4000 | −40~+150℃ | ||
PWA200DTR16 | 1600 | 200 | 4000 | −40~+150℃ | ||
PWB150DTR08 | 800 | 150 | 3200 | −40~+150℃ | ||
PWB150DTR16 | 1600 | 150 | 3200 | −40~+150℃ | ||
PWB200DTR08 | 800 | 200 | 4000 | −40~+150℃ | ||
PWB200DTR16 | 1600 | 200 | 4000 | −40~+150℃ |
